Indonesian Discover the Ultimate Water Storage Solution

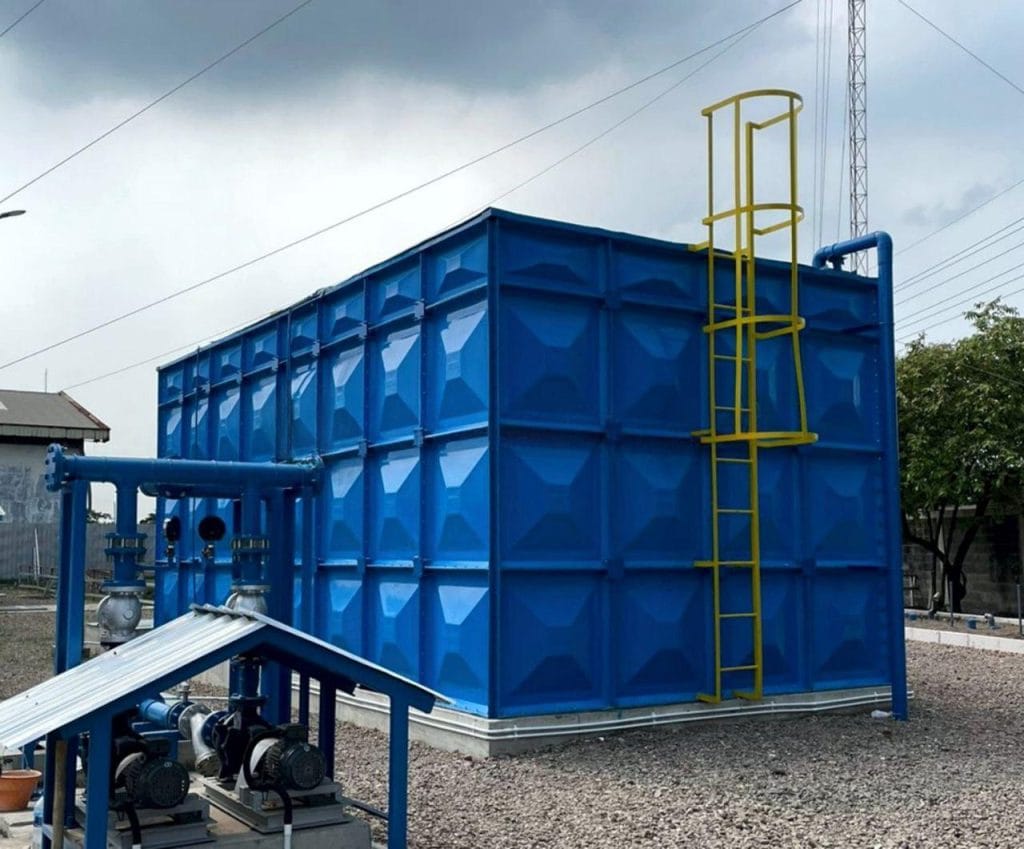

Flexible, Durable, and Easy-to-Install Panel Tank FRP Modular Water Tanks
Tiger Water Solutions offers ready-made modular water tanks for homes, businesses, and industries. Use them to collect rainwater, prepare for emergencies, or store large amounts of water. Our tanks are quick to set up, reliable, and can be adjusted as your needs change.

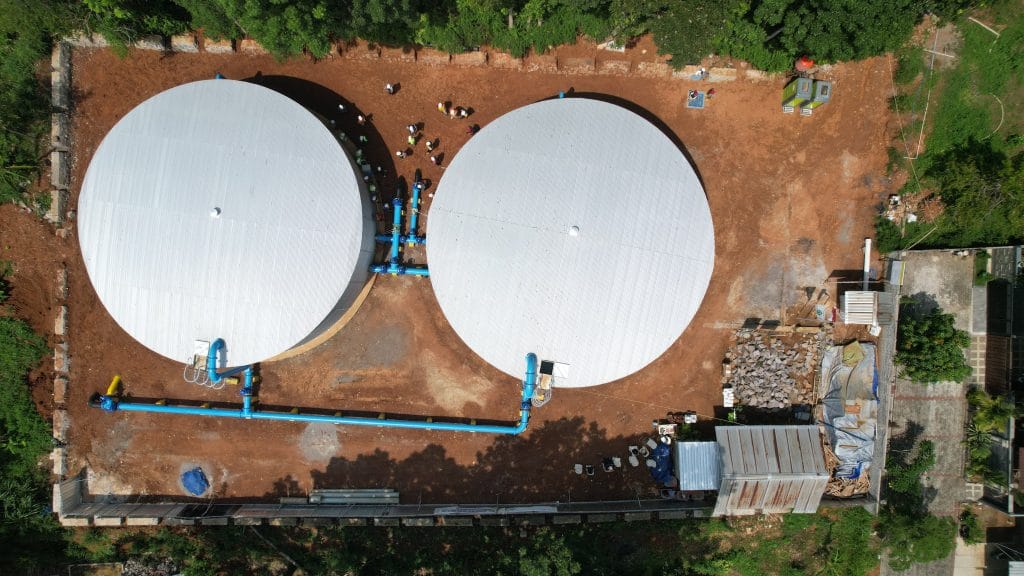

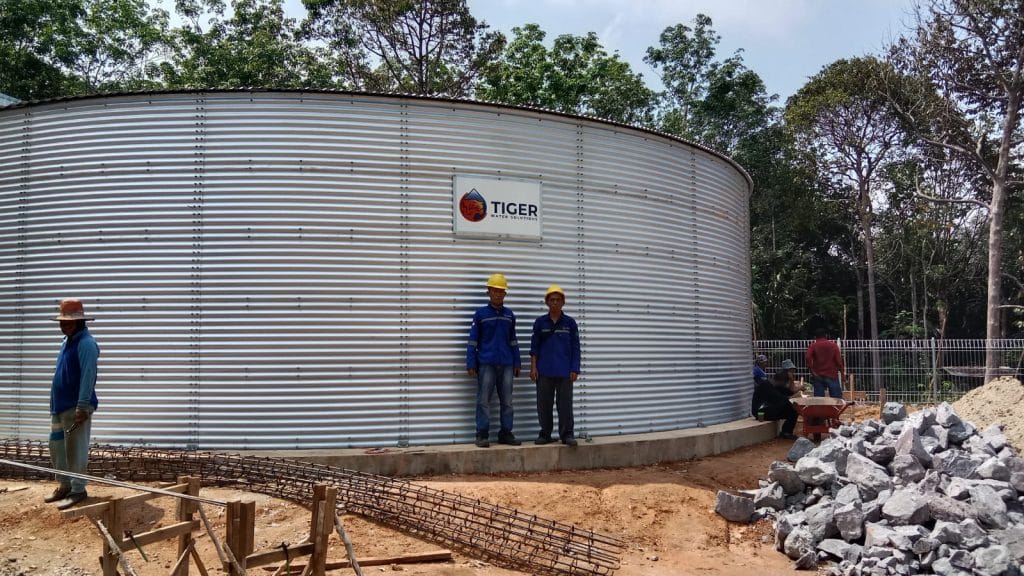

Applications in Various Industrial Sectors
Our FRP panel tanks have been widely used in various important sectors in Indonesia:

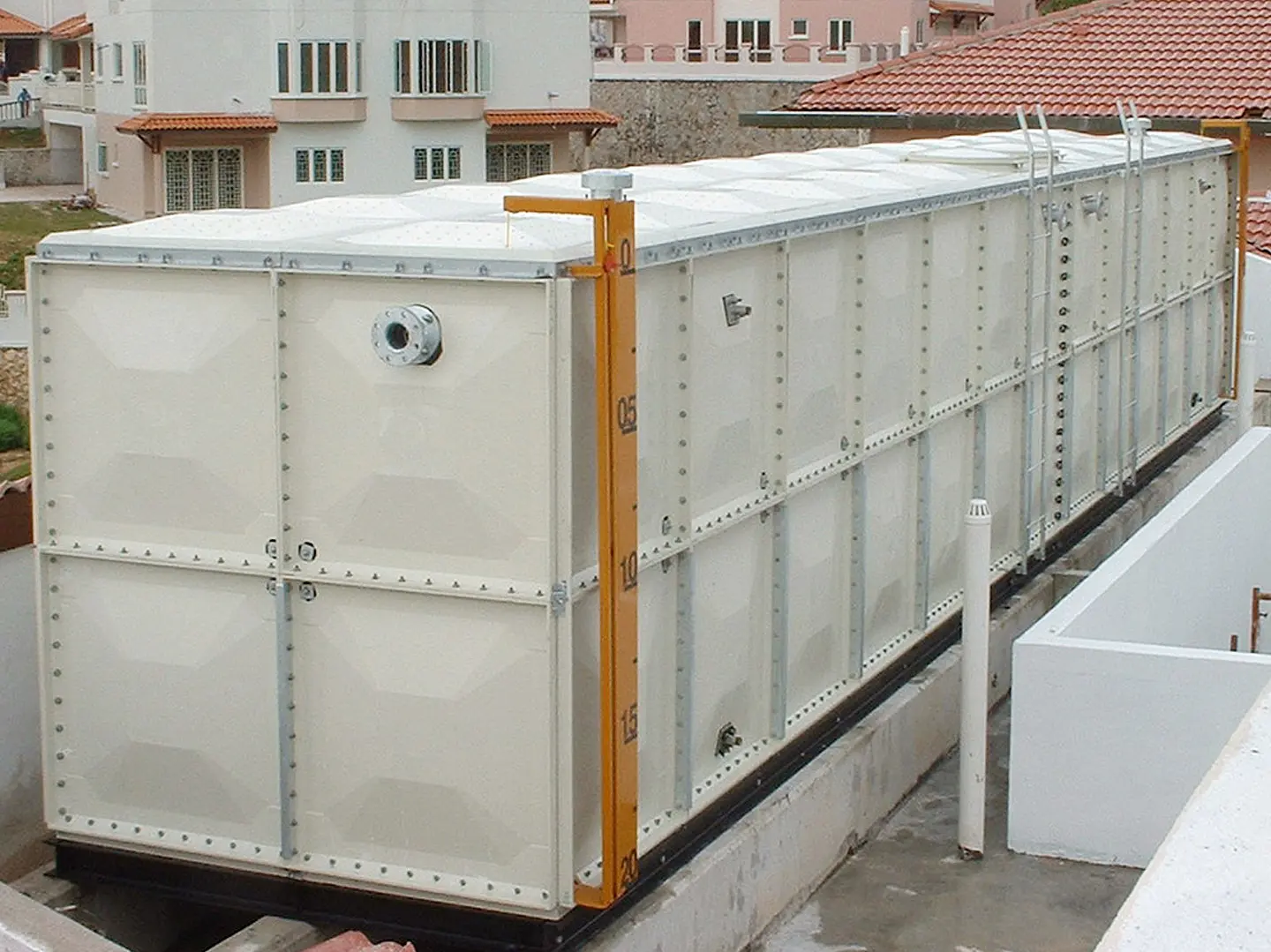

Security & Commercial Facilities
- Fire Protection – Water reserve tanks for hydrant and sprinkler systems in high-rise buildings.
- Hotels & Commercial Buildings – Ensuring the availability of clean water and hygienic sanitation for guests and residents.
- Wastewater Treatment (IPAL) – Resistant to corrosive chemicals from industrial waste.
- Dewatering Tank – Used in the water separation process in mining areas.

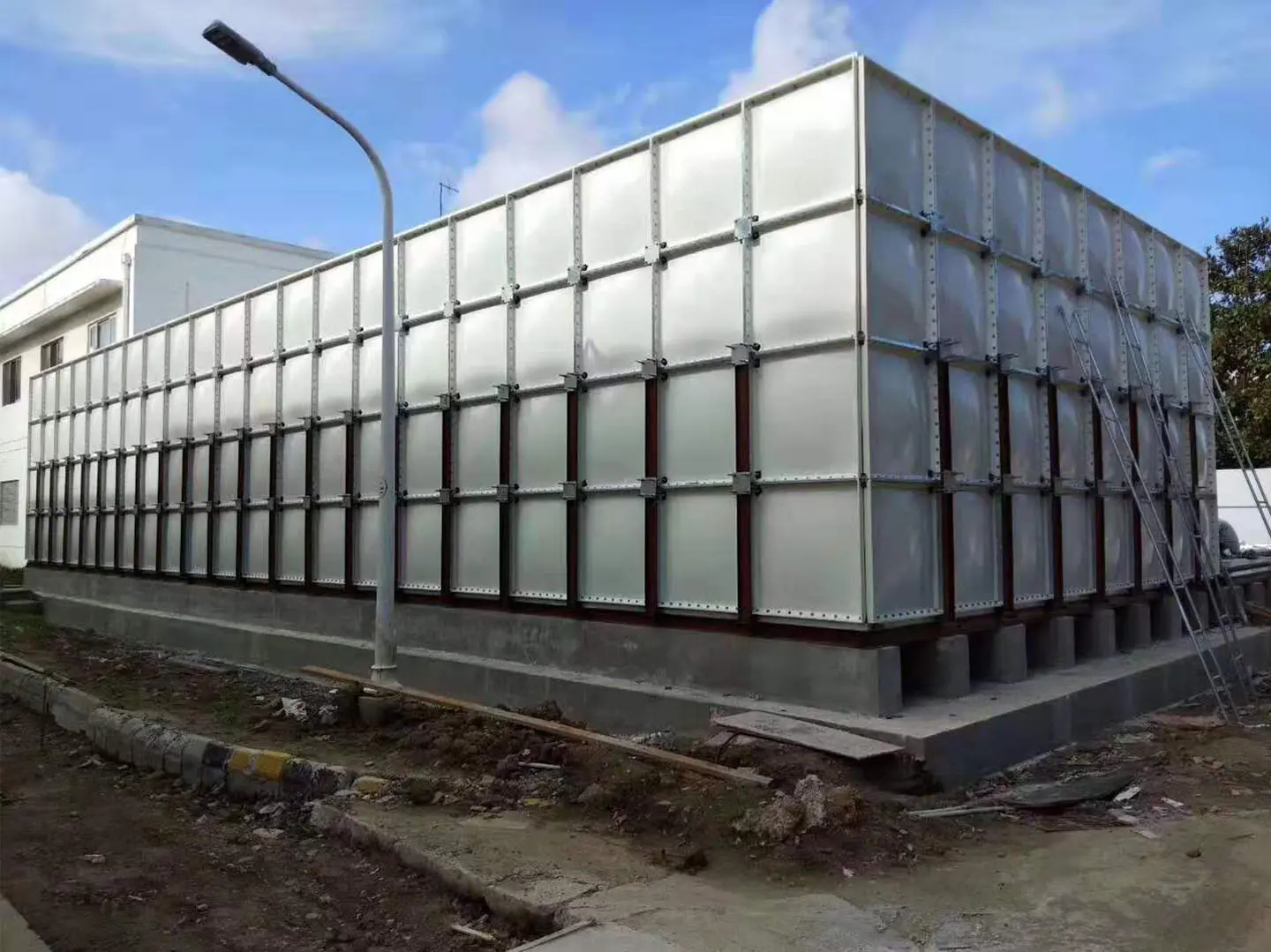

- Industrial Water Storage – Supports factory operational needs and machine cooling systems.
- Irrigation Systems – Provide a stable water supply for agricultural land.
- Rainwater Harvesting Tanks – An effective water conservation solution for plantation areas during the dry season.
Advantages of FRP Composite Panels from Tiger Water Solution
In the Indonesian market, many local fiberglass tanks are manufactured using the Hand Lay-Up method. Although common, this process has fundamental weaknesses for industrial storage standards.
The Dangers of Using Local "Hand-Rolled" Tanks
Traditional methods rely heavily on the manual skills of workers. Fiberglass sheets are stacked in an open mold, then resin is poured and rolled manually to remove air. The result:
- Structural Inconsistency : Uneven thickness creates weak spots that risk breaking when bearing the weight of water.
- Hidden Defects : Air bubbles (voids) trapped within the layers cause internal cracks and delamination.
- Inconsistent Quality : The product is highly dependent on the physical condition of the workers, resulting in panels of varying quality.
Tiger Water Solutions: Advanced Compression Molding (SMC)
We have moved away from manual methods and use Compression Molding (SMC) technology. Our panels are manufactured in a controlled factory environment using high-powered industrial presses and hot metal molds.
- High Density Structure – Panels are manufactured under high pressure, making them denser and stronger than hand lay-up fiberglass.
- Bubble-Free & Leak-Proof – The mechanical process eliminates microscopic air, ensuring completely watertight panels.
- Smooth on Both Sides – Prevents algae growth and makes cleaning easier.
- Consistent Precision – Uniform thickness and weight ensure optimal balance and structural stability of the tank.
FRP (Fiber Reinforced Plastics) is a specialized plastic engineered to outperform steel and concrete in corrosive environments.
Key Performance Indicators:
- Design Service Life: Engineered for a service life of more than 30 years.
- Corrosion Resistance: 100% rust-proof and resistant to a wide range of chemicals as well as UV exposure.
- Weight Advantage: Significantly lighter than concrete, reducing the load on building foundations and facilitating transportation to remote locations.
- Hygienic: Our SMC panels are food-grade and safe for storing drinking water (potable water).
Our tanks use a modular panel system, allowing total flexibility in size and capacity.
Structural Components:

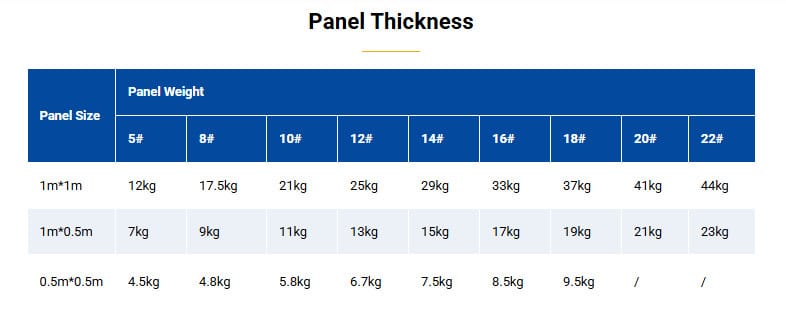

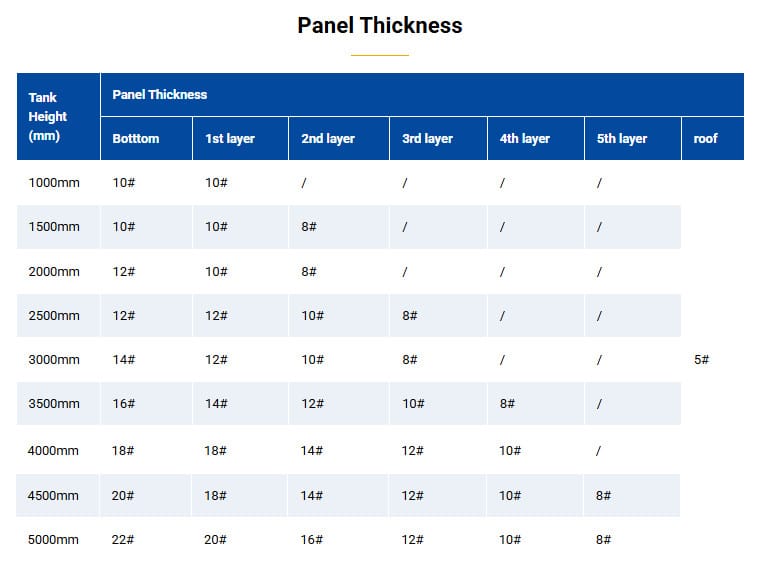

FRP Panel Technical Specification
Remarks:
- Packing: We will use steel frame as the package
- Delivery time : Around 10-15 days when we received your payment.
- Payment: full TT payment before leaving factory.
- Warranty time:1 year from leaving our factory.
- Tank lifetime:Lifetime is around 20-25 years.(It deponds on the water quality).
- Tank Usages: Farm irrigation/ Drinking/Shower/Fire-fighting etc….
Advantages of Tiger FRP Water Tank Panels
Versatile Applications
Tiger’s modular water tanks work for many uses and industries.
Residential Use
Harvest rainwater, irrigate gardens, and store emergency supply in compact, aesthetic tanks designed to fit residential properties.
Commercial Use
Reliable water storage for offices, retail, schools and facilities demanding consistent supply or backup systems.
Industrial Use
High-capacity systems for manufacturing, processing, or any operation requiring robust water storage.
Emergency Storage
Quick-deploy tanks that ensure water security in remote locations and during natural disasters.
Accessories of GRP Water Tank :
- Panel material: Food-grade fiberglass plastic Panel thickness:
- 20mm/18mm/16mm/14mm/12mm/10mm/8mm/7mm
- C-channel: Hot-dip galvanized steel
- Fastening rods and fastening boards: Hot-dip galvanized steel
- Bolts and nuts: Hot-dip galvanized steel
- Food grade material
- Ladder: hot-dip galvanized steel
- Rubber adhesive: food grade material (white)
- Support: hot-dip galvanized steel
- Flange: hot-dip galvanized steel (input, output) 11, Additional angle iron: hot-dip galvanized steel
Certificate FRP Tiger Water Solutions
